•This function allows export all or selected TelMaster uW Links to Google Earth 3D viewer installed locally on user workstation.
oLine string place marks are complemented with attributes from HAKOM permissions.
oAntenna heights and azimuths are used in KML data generation.
ouW Links are drawn as extruded line string place marks with initial look at A side node.

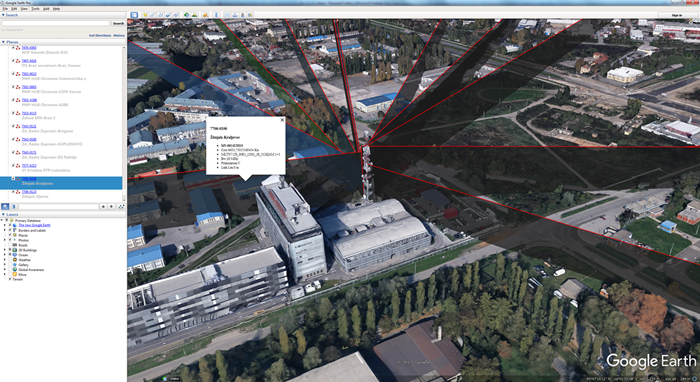

Figure 17: uW Links are drawn as extruded linestring placemarks with inital look at A side node.

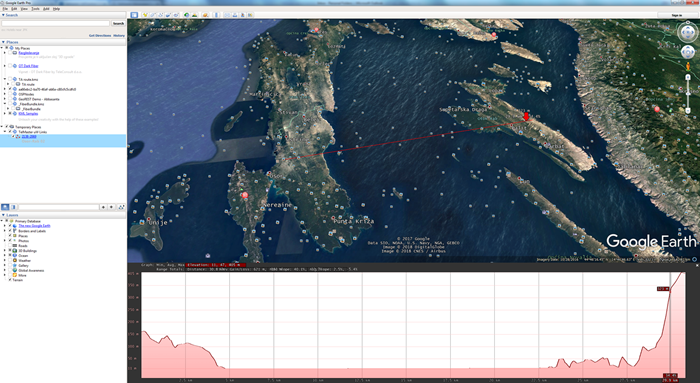

Figure 18: Elevation profile for selected microwave link in Google Earth.
