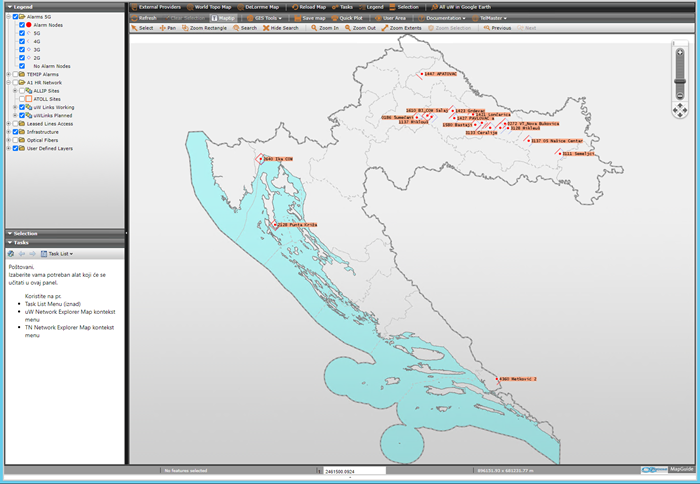

•TEMIP alarms are visualized within TelMaster Alarms Map as point layers.

oAlarms are  are read directly from alarms database on Sql Server and refreshed every 5 minutes.

oAlarms are read from alarms table and further processed and consolidated with TelMaster network description.

▪Alarm NETWORK_ELEMENT is related to NodeID to enable georeferencing of alarms for GIS visualization.

oNodes without alarms are drawn as green dots.

▪For scale range 0 - 699999 as dot of 7 points and feature label.

▪For scale range 700000 - 1999999 as dot of 4 points and no feature label

▪For scale range 2000000 - Infinity nothing is drawn.

•To not clutter the Map.

oNodes with alarms are drawn with red dots.

▪For scale range 0 - 699999 as dot of 7 points and feature label.

▪For scale range 700000 - Infinity as dot of 5 points and feature label.

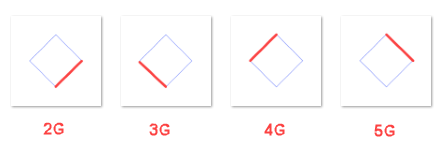

▪Nodes with alarms are additionally visualized with different symbols according to SYSTEM attribute;

•2G

•3G

•4G

•5G
