•Grid based user interface is flexible and powerful data browser/ editor as exemplified below:
oCustom data search for selected columns.
oHorizontal scroll bar automatically appears depending on screen resolution.
oGrid data is initially appropriately pre-filtered.
oActive row is highlighted.
oStatus column appearance is customized.

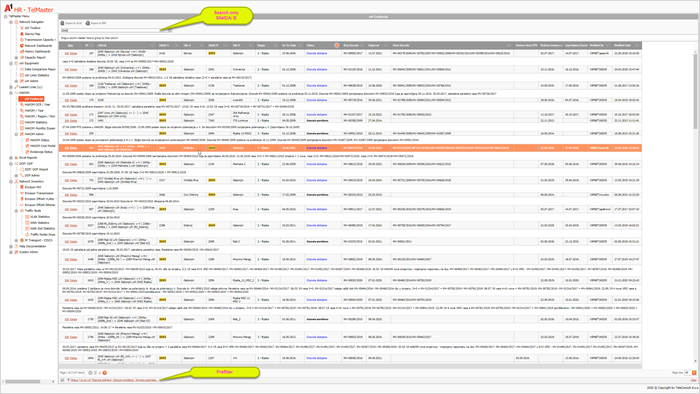

Figure 24: Grid based data browser with data searching/ filtering.
•Data editor is implemented within compact popup window.
oData validation result with visual markers and error description.
▪Data validation errors include:
•Mandatory attributes.
•Allowed attribute data range, e.g.
oMin frequency: 5900
oMax frequency 85000
oData entry supported with cascaded combo boxes when appropriate.
▪Leased Lines Editor attributes;
•Provider
oCost Type
▪Cost Model

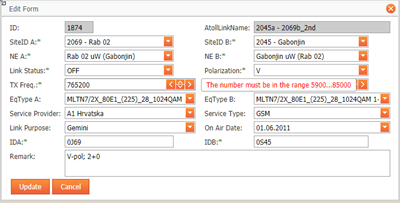

Figure 25: Data editor with integrated data validation.
